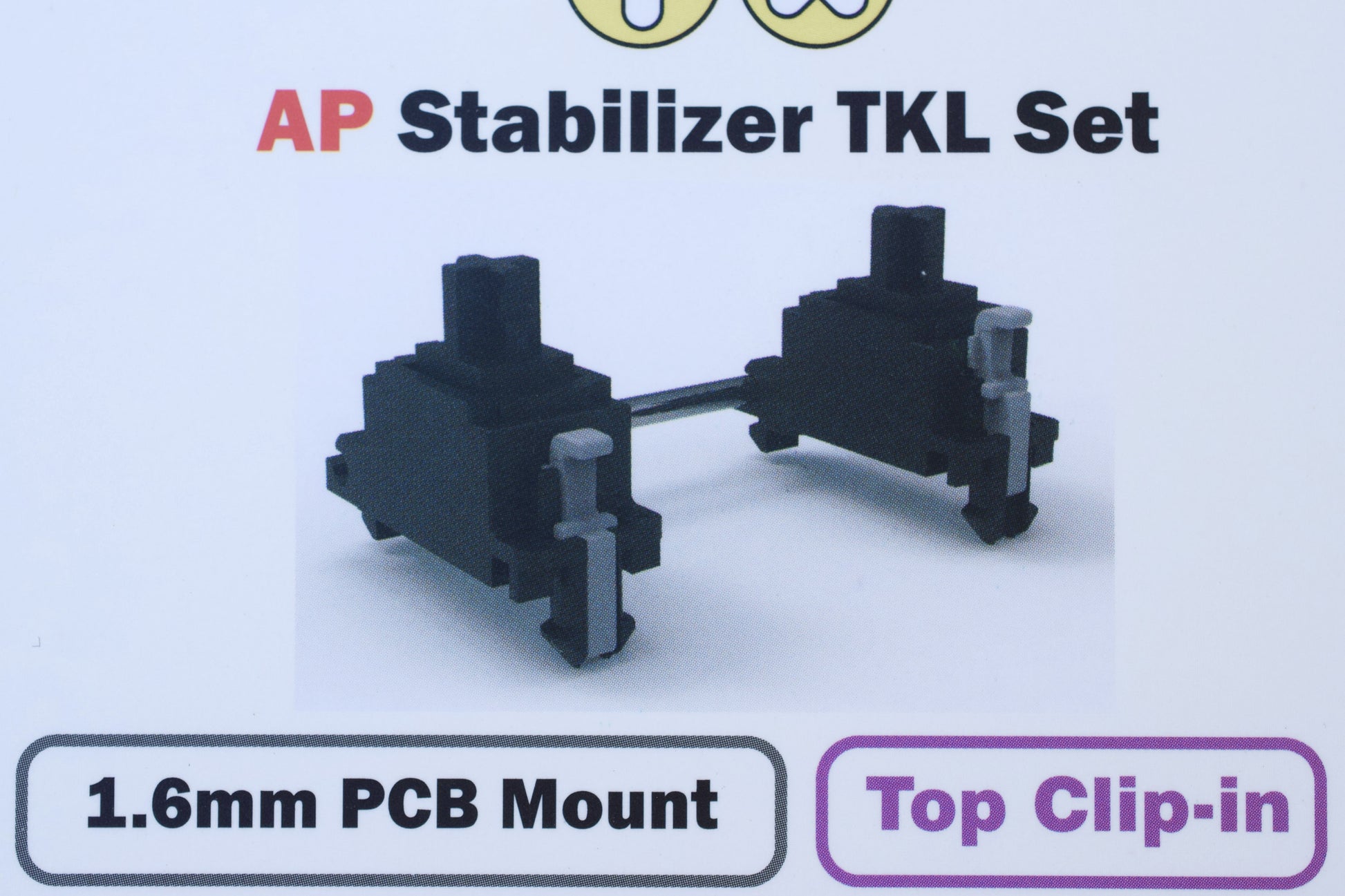

TX AP PCB Stabilisers

Almost Perfect! A light coat of lube and you're done!

TX Stabilisers feature a double shot stem with a TPU and POM mixture inside, which helps minimise rattle and makes tuning a breeze. These stabilisers are for standard 1.6mm PCBs.

"Almost Perfect" stabilisers have even tighter tolerances than the Rev 3 version. These stabs work best with straight spacebars as binding may occur with slightly warped spacebars.

TX AP Stabilisers - Revision 4 / Newest Version as of December 2024

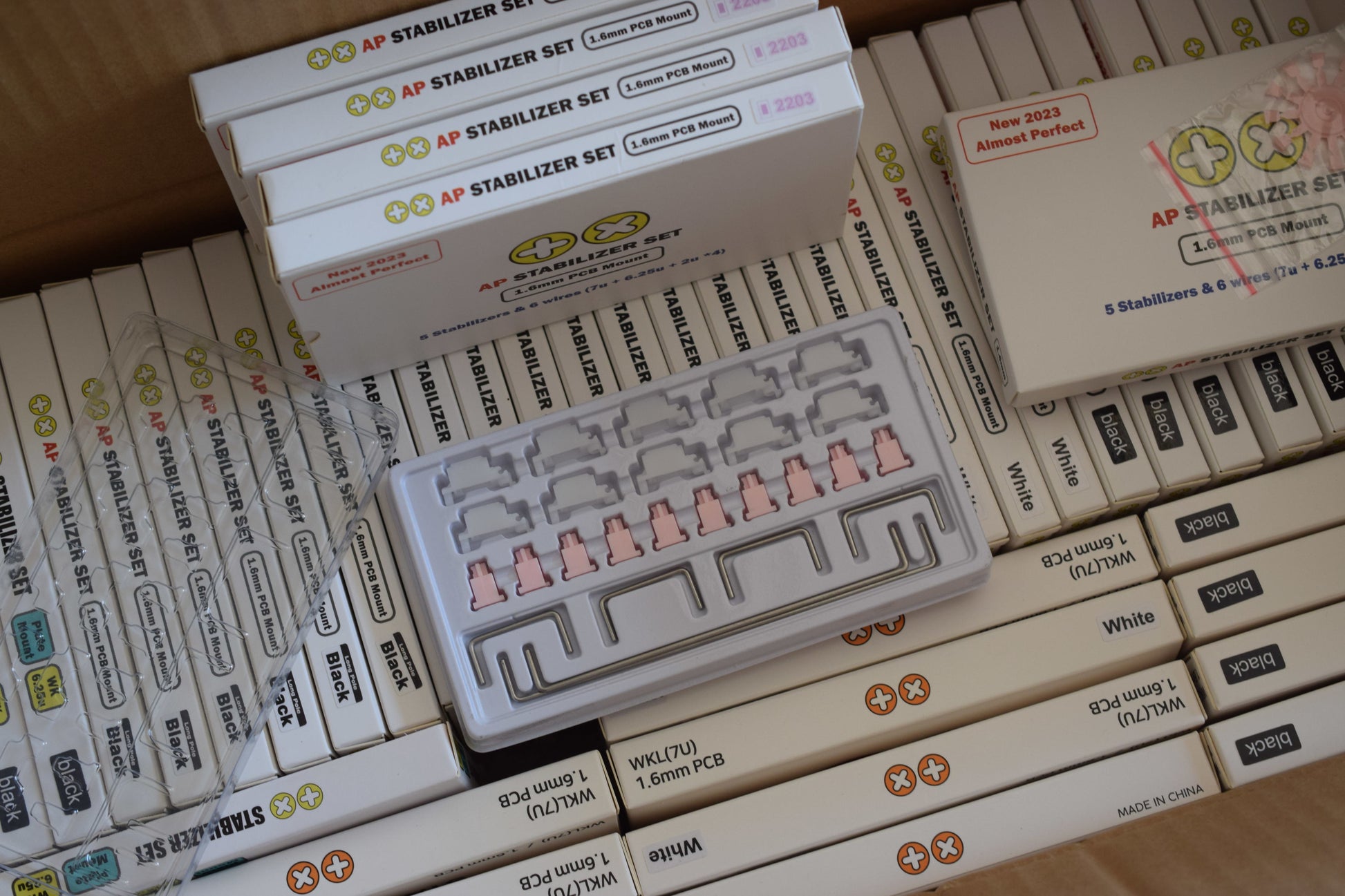

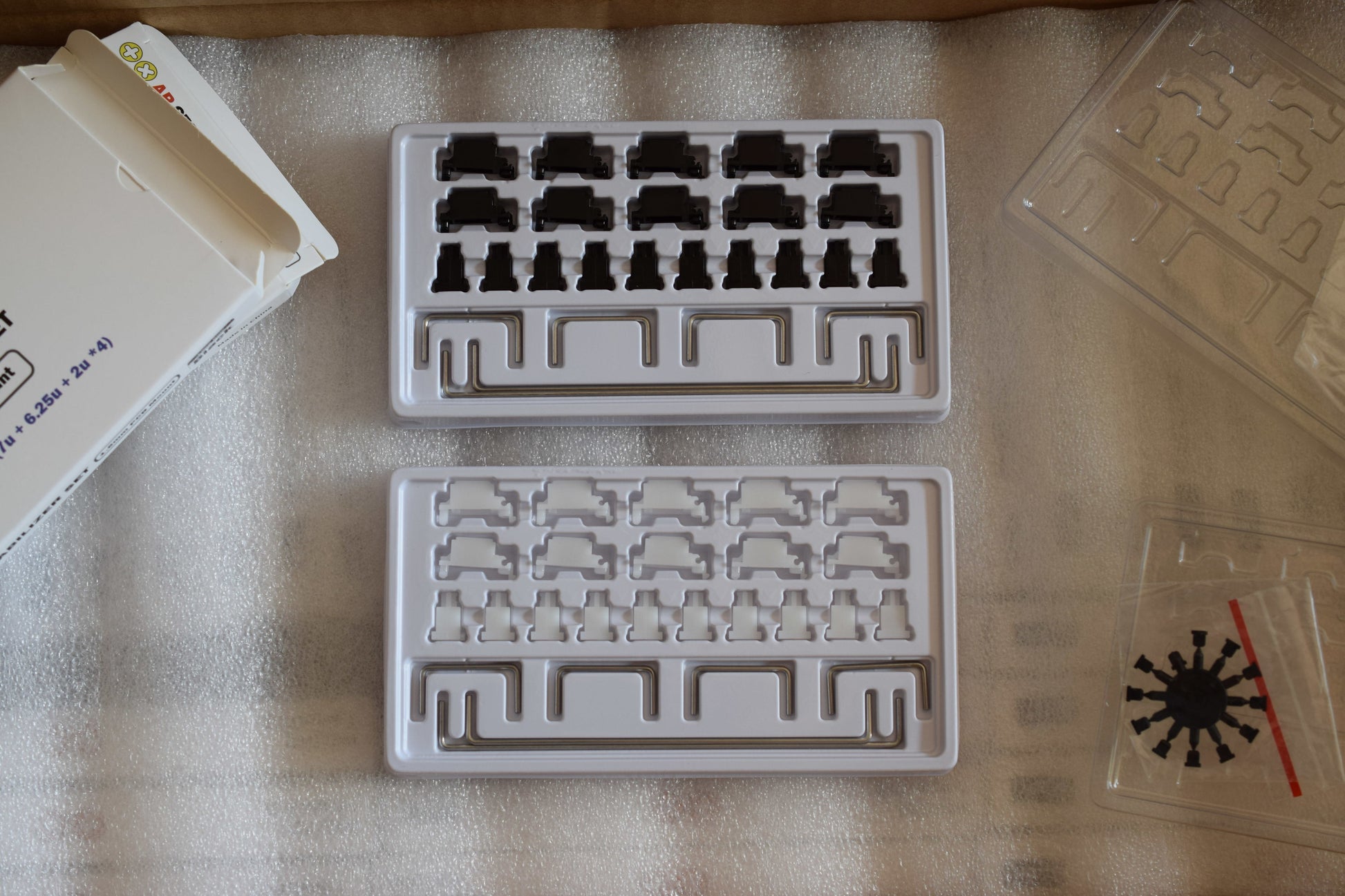

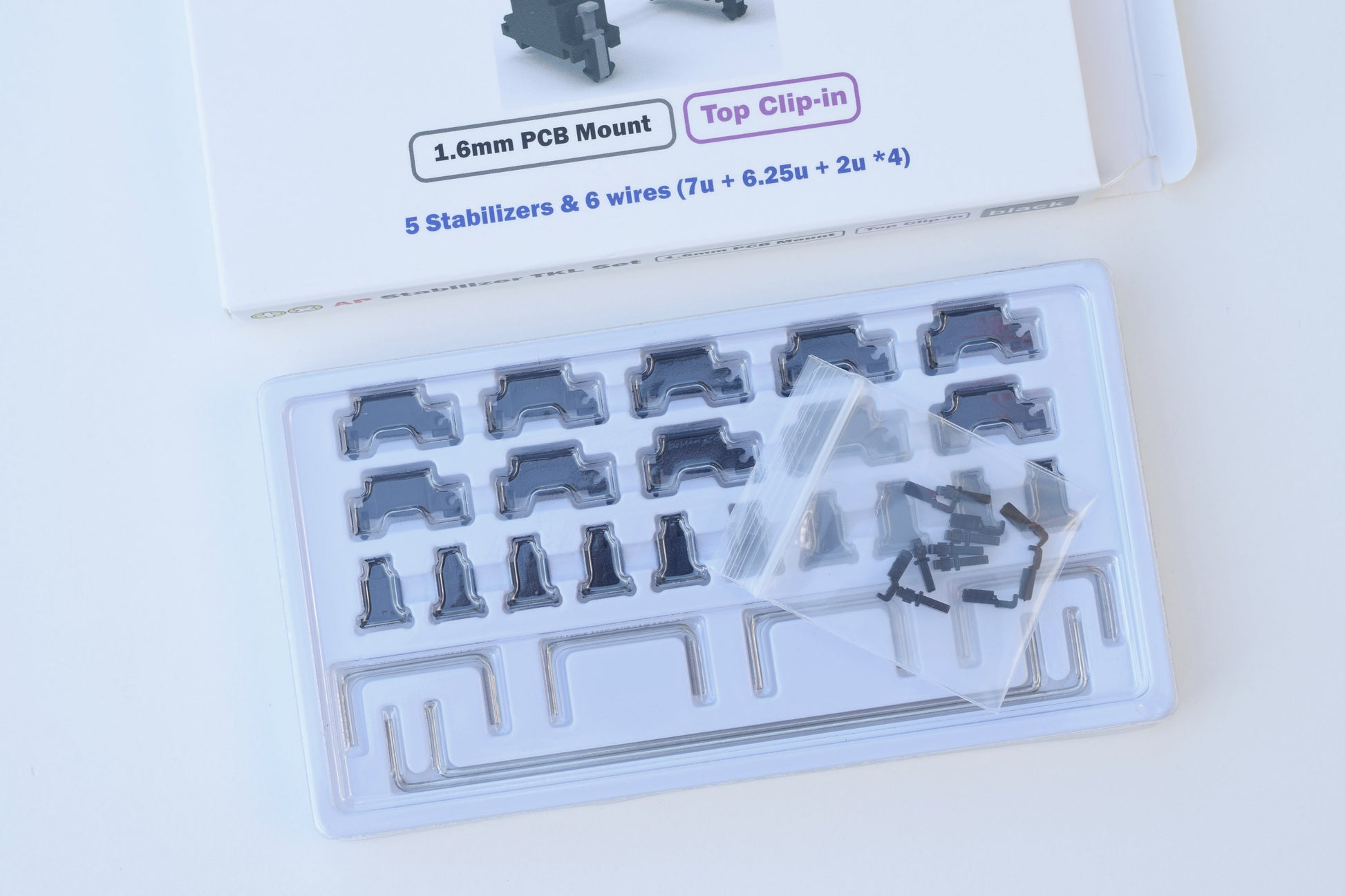

TKL Kit contains:

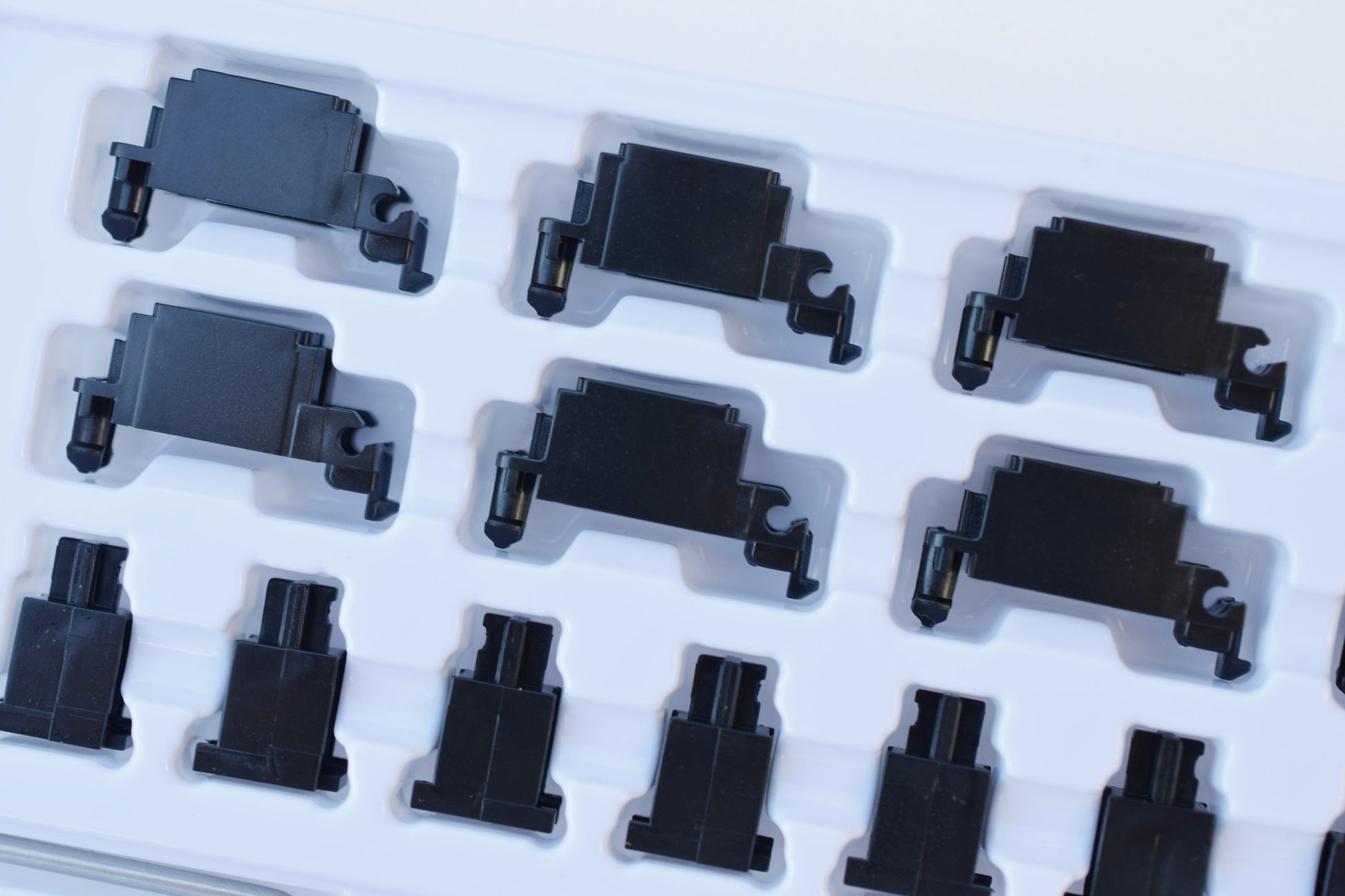

• 10x Stabiliser Housing
• 4x 2u Stabiliser Wires
• 1x 6.25U Stabiliser Wire
• 1x 7U Stabiliser Wire

• 1x Set of Stabiliser Stoppers (Clip In) or Screws (Screw In)



Disclaimer
The standard thickness of a keyboard PCBs is 1.6mm.

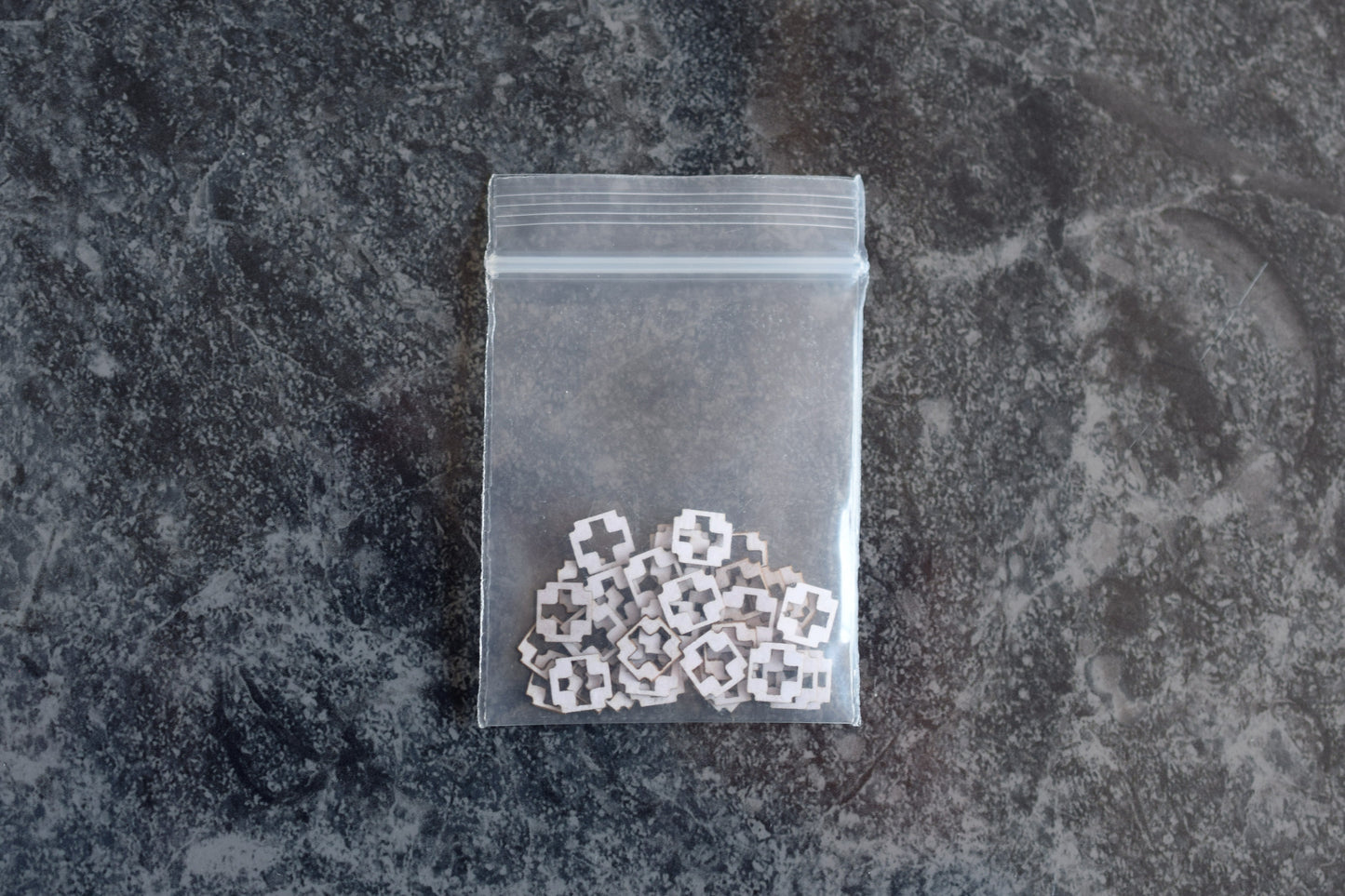

1.2mm Keyboard PCBs will require shims to fit 1.6T stabilisers.

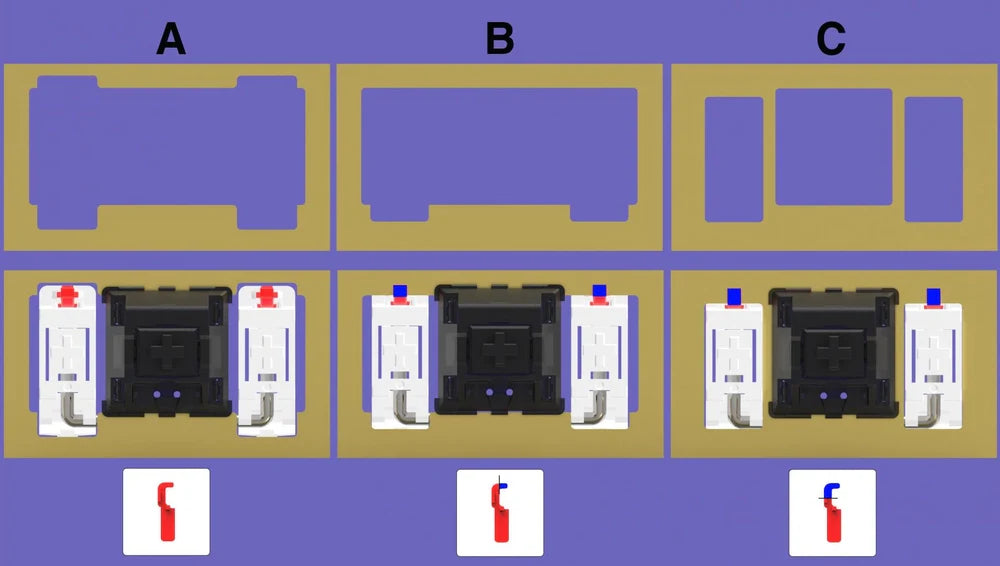

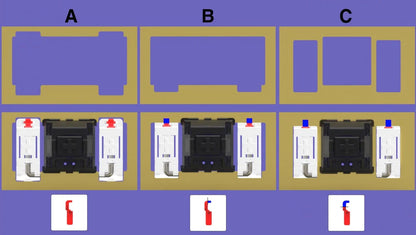

TX Top Clip In Stabilisers might have some capability issues with certain plates. Please refer to the image below to see if your stabilizers will require extra modifications.

• Type A: Stabilisers can be used normally without modification

• Type B: This cutout is usually used when the PCB allows multiple 1u switches as an alternate layout. If there is interference at the latch area, you may need to slightly trim the blue section

• Type C: For this type of plate, you will need to cut the middle part (blue) before using.
