Tinny50 - Build Guide

Build Tips

Have a damp cloth available to wipe down all the acrylic layers; peeling the plastic/film may leave flakes/dust/powder on the acrylic.

If you need assistance getting to the building stage, please refer to the following guides:
Tinny 50 Case Teardown
Tinny 50 Plate and PCB Preparation Guide

Build Guide - Start

• Do not remove the screws or standoffs from the bottom of the case.
  Peel the brown paper film off and install the 2x white bump-ons on the underside.
•
  Peel and add the 2nd frosted acrylic layer riser.
•
  Peel and add the 3rd and largest frosted acrylic layer riser.
•
  Peel the plastic film off both sides of the clear acrylic base. Install the 2x clear bump-ons on the underside, towards the front.
•

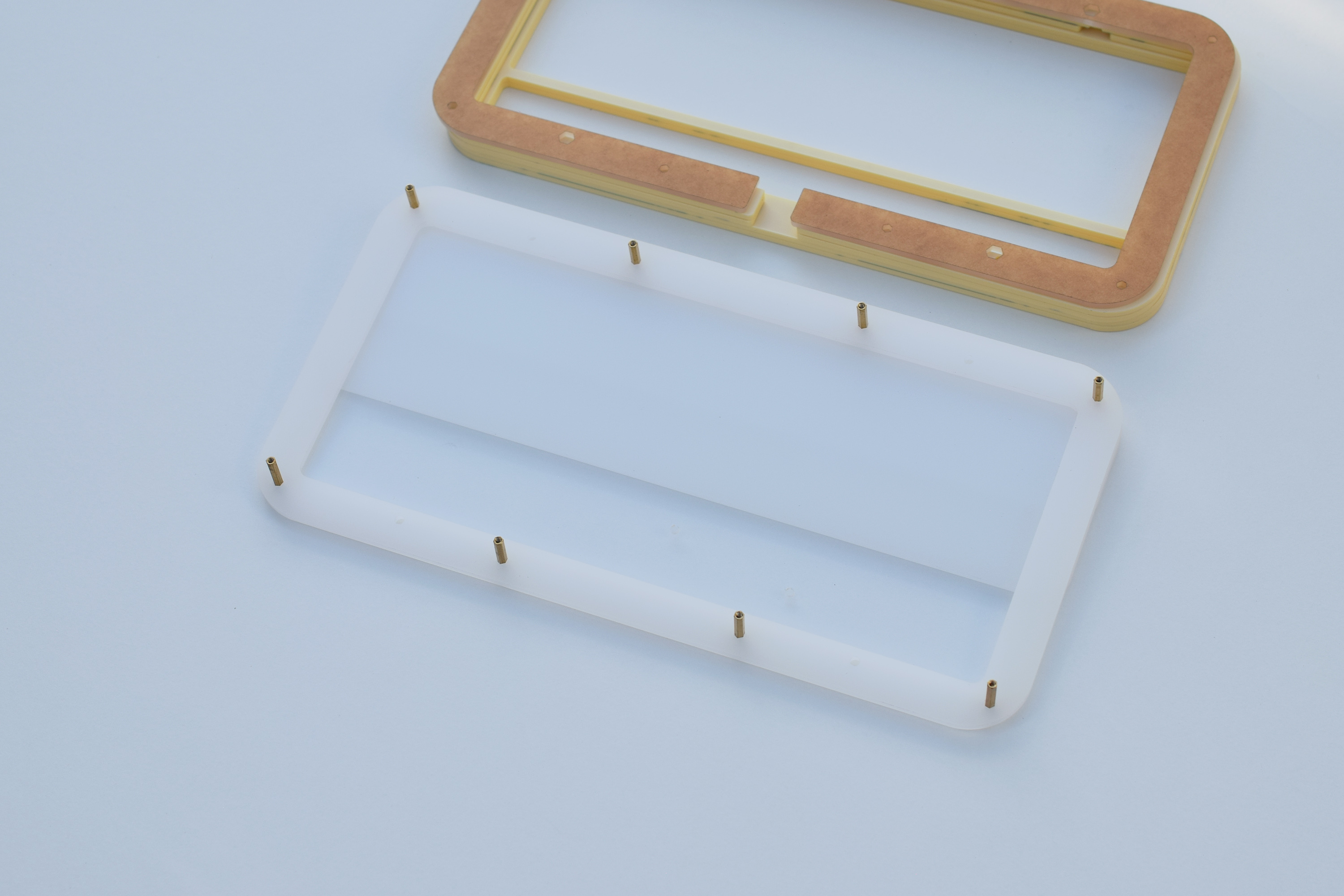

  Peel and install the frosted acrylic layer. This diffuser layer has no USB Cutout.
•
  Peel and install the frosted acrylic layer. This diffuser layer has a USB Cutout.
•

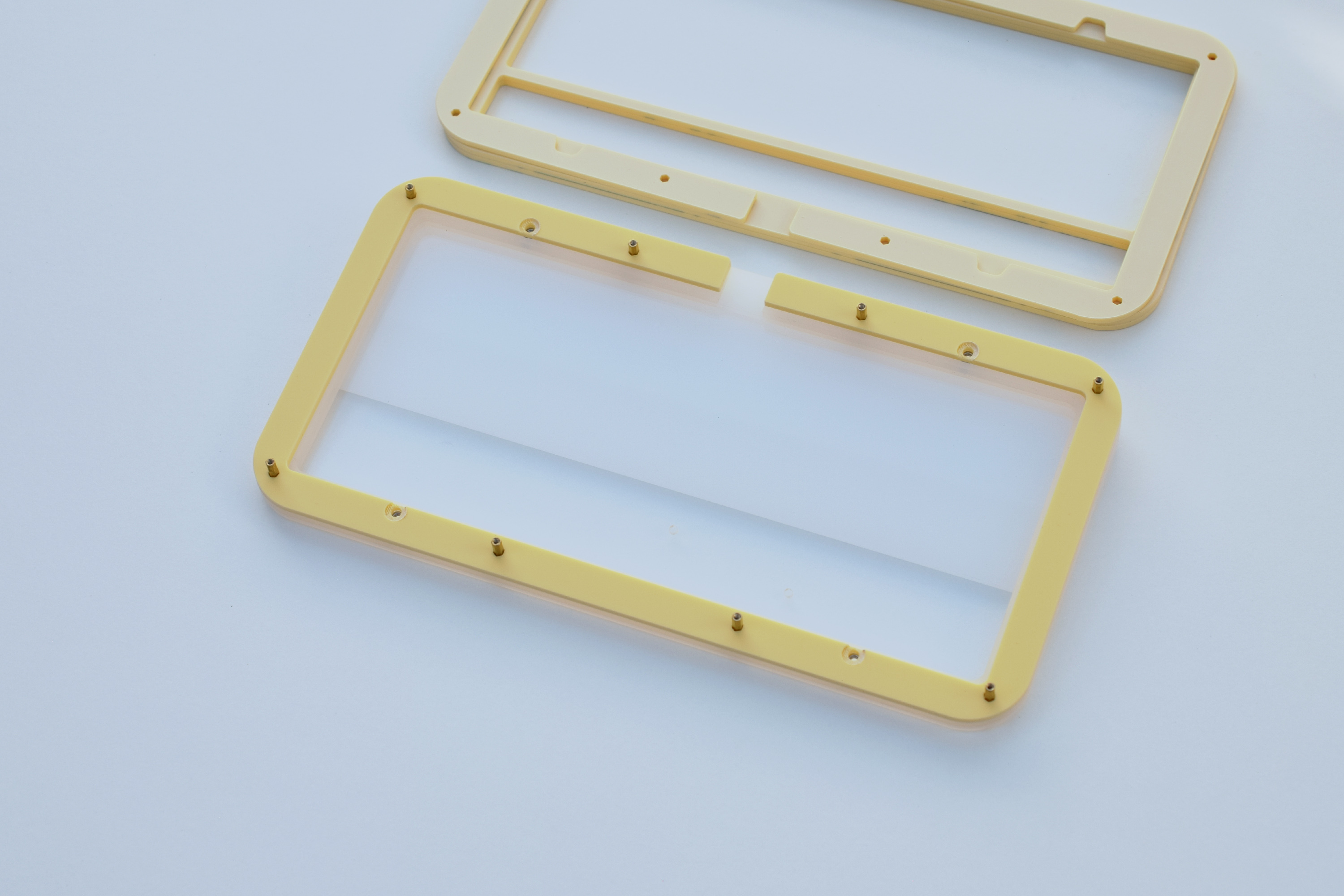

  Add the 4x M2.5 Nuts.
•
  Peel and install the layer with circular engravings.
•

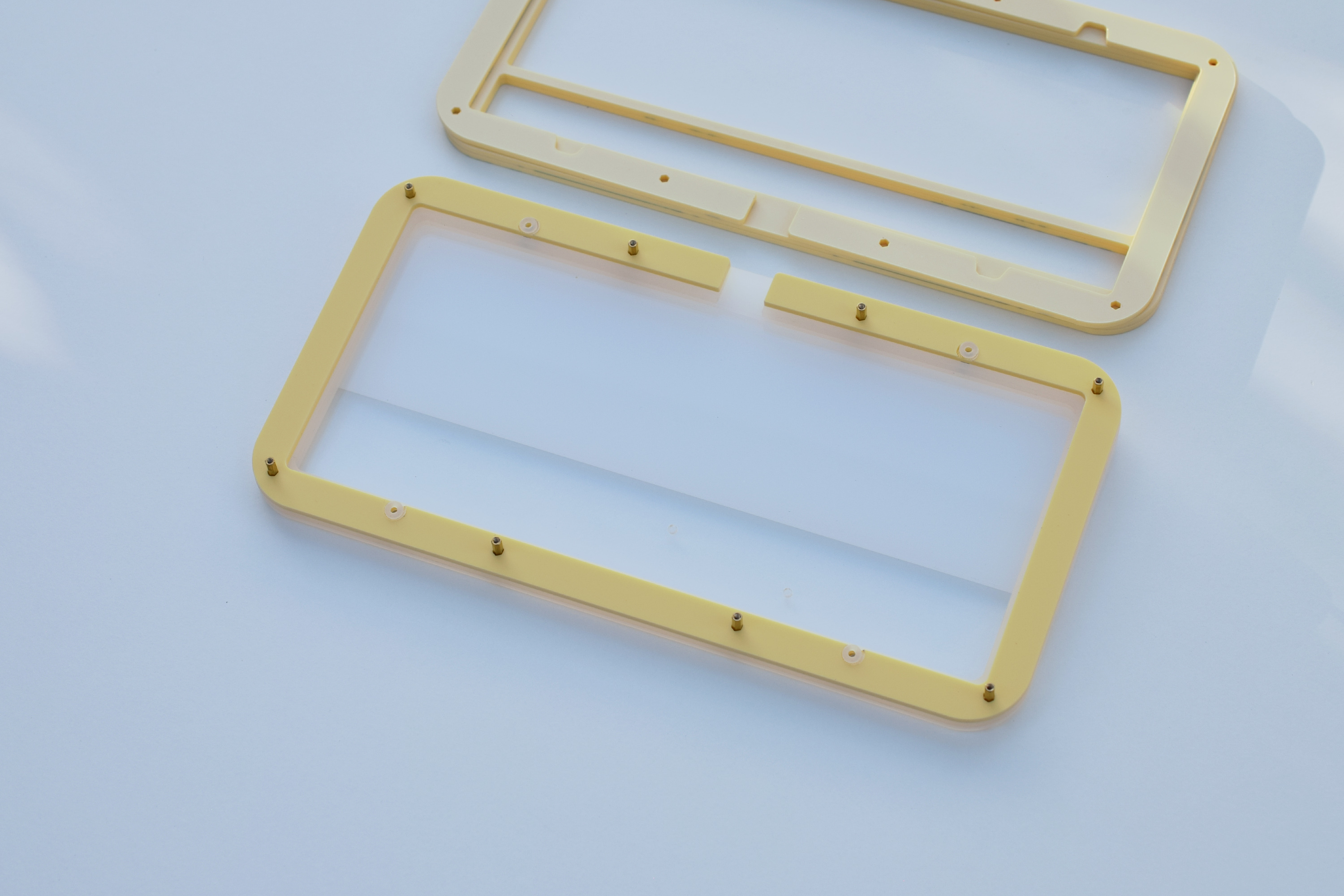

  Add the 4x O-rings.
•

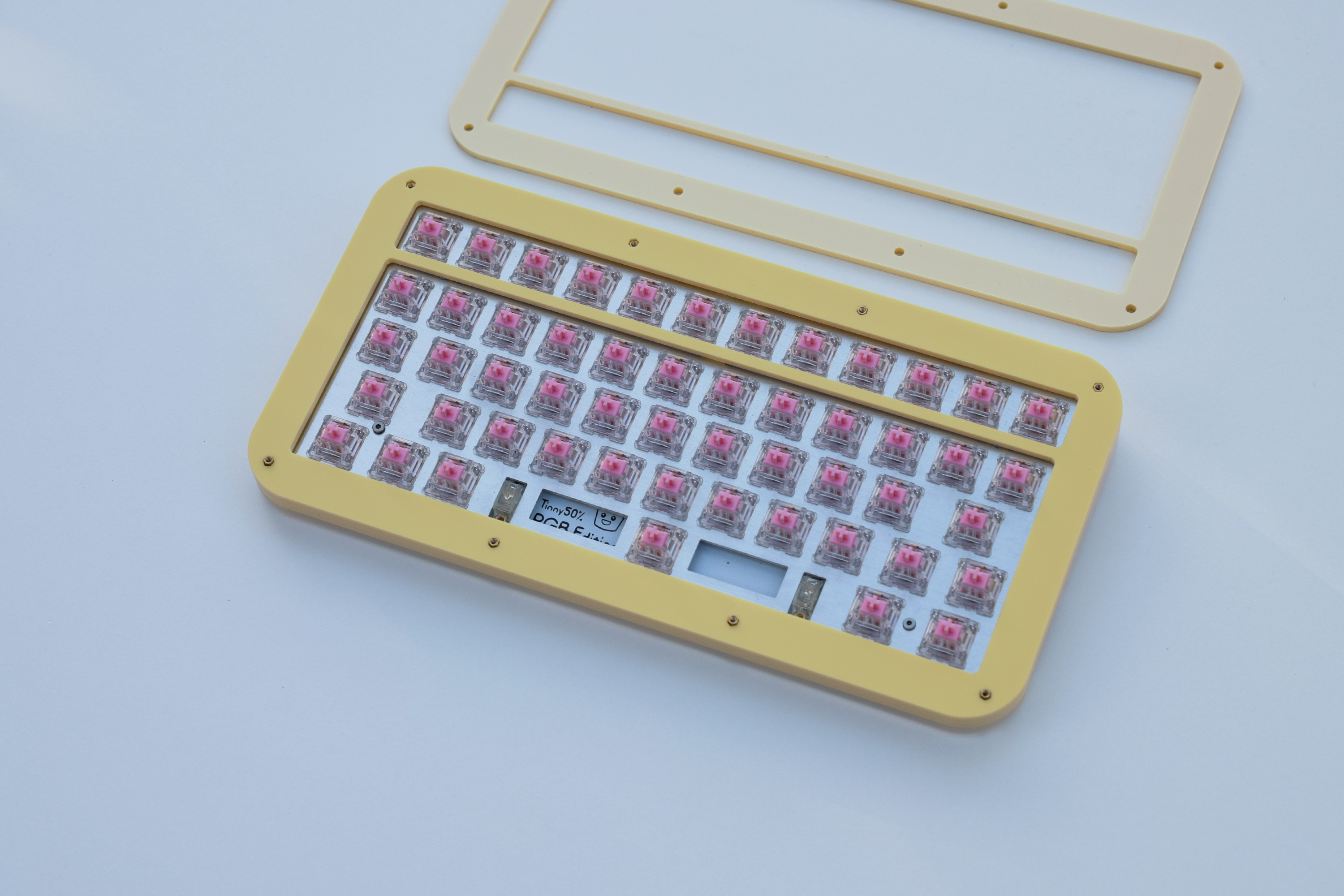

  Install the Plate and PCB and secure it in place with the M2.5 Screws; do not use excessive force and/or over-tighten.

  If you need extra assistance, please refer to the guide:
  Tinny 50 Plate and PCB Preparation Guide
•

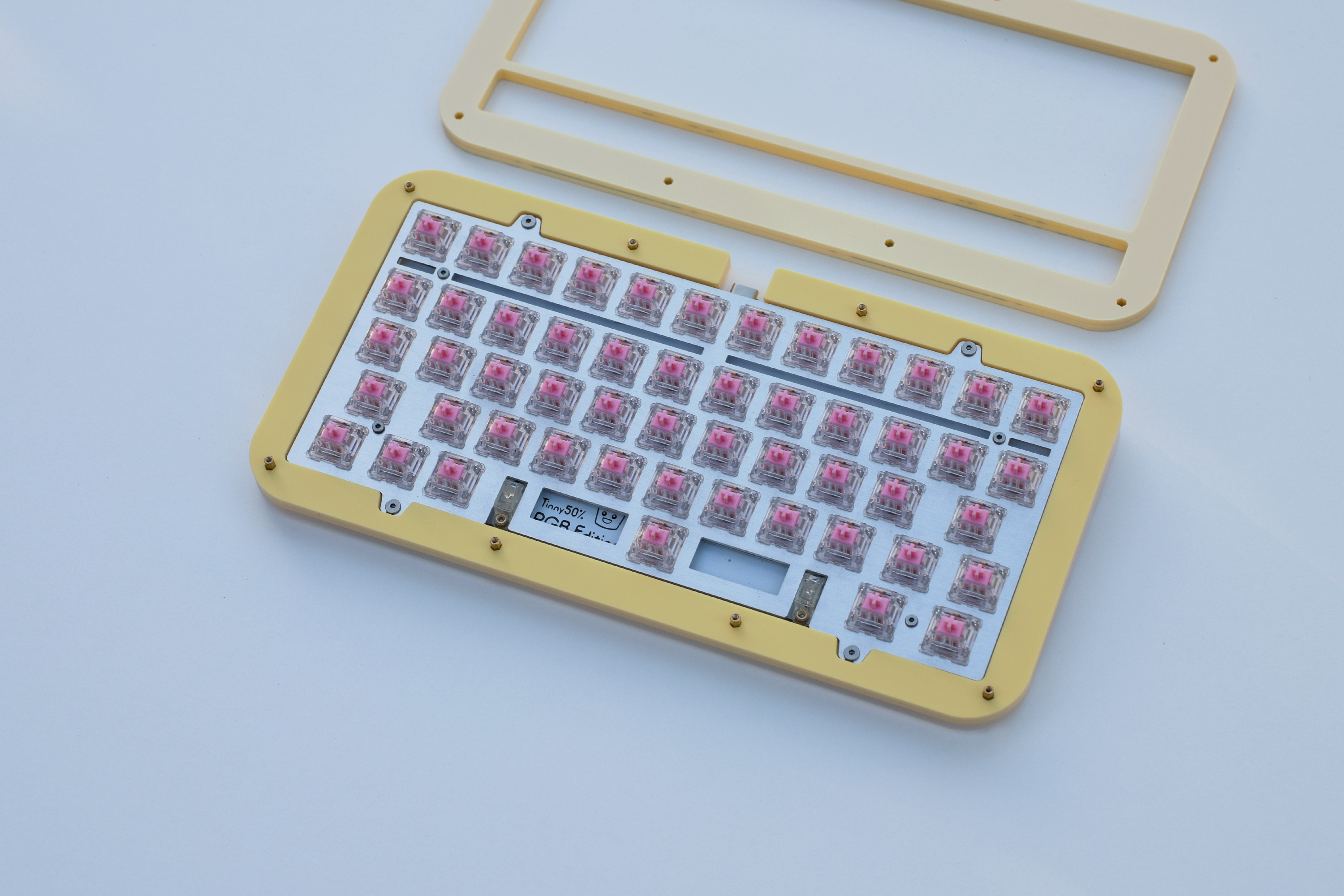

  Peel and install the 2nd last piece of acrylic. Take care not to snap the thin piece of acrylic which separates the numbers from the body.
•
  Peel and install the final layer.
•
  Finally, add and install the M2 screws.
•
  View from the underside.
